Davis Vantage Pro 2+ Fan Aspirated Weather Station 6163AU

Davis Instruments Vantage Pro 2 Plus Weather Station with Fan-Aspirated Radiation Shield
(Davis 6163AU)

We Think You Should Know

• Australian Davis Warranty
• Purchase Guarantee (see T&C's)
• Indoor and outdoor temperature and humidity
• Wind speed, wind direction, and wind chill
• Rainfall and rain rate
• Heat index and dew point
• UV and Solar Radiation
• Barometric pressure reporting
• Solar-powered with stored energy backup
• Large, backlit 3.5" x 6" (9 x 15 cm) LCD screen
• Fan-Aspirated Radiation Shield
• Fast updates every 2.5 seconds
• Wireless transmission from station to console up to 1,000 ft. (300 m)
• Optional WeatherLink data logger and software offer additional analyses in a variety of versions

Overview

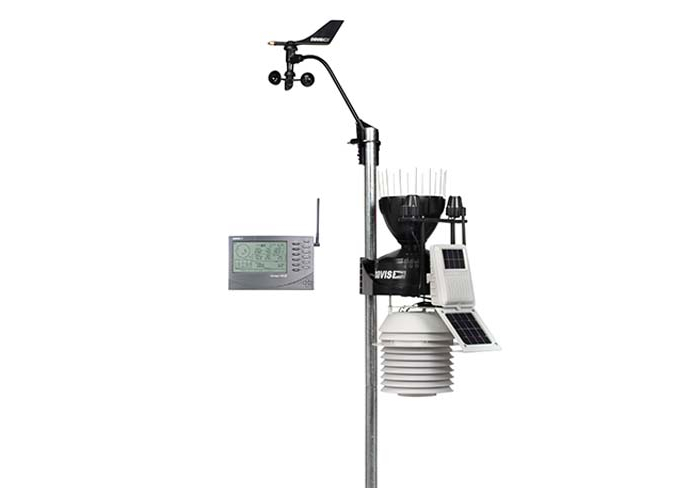

The Davis 6163AU Vantage Pro 2 Plus Fan Aspirated Weather Station includes Vantage Pro 2 console/receiver, integrated sensor suite (ISS), and mounting hardware. ISS includes a rain collector, temperature and humidity sensors, an anemometer, a 12 m anemometer cable, a solar radiation sensor, a UV sensor, a sensor mounting shelf, and a solar panel.

The Temperature & humidity sensors are enclosed in our patented, solar-powered, 24-hour fan-aspirated radiation shield. Shield combines fan aspiration and passive shielding to minimize the effects of solar radiation.

ISS is solar-powered. Electronic components are housed in a weather-resistant shelter. The console may be powered using the included AC-power adapter or with three C-size batteries (not included).

Features

Refresh Rate - A packet of data is sent from the outdoor transmitter to the receiver every 2 1/2 seconds! This means when you look out the window and see the wind blowing, the weather station will reflect it almost immediately.

Transmission Distance - (This applies to the wireless version) - Max Line of sight range is 300M. Typical range under most conditions is 200M TO 250M. This is a much greater distance than other professional units.

Other Davis Vantage Pro 2 Features Include:

Solar Powered Integrated Sensor Suite - (Wireless models only) The wireless, rugged outdoor sensor suite runs on solar power. A lithium battery provides backup at night and during cloudy, winter days. The cabled version receives power from the base station.

Temperature - Current inside and outside temperature, and for each of the last 24 hours. High and low temperature alarms.

Rain - Rainfall for the last 15 minutes and the last 24 hours, 24 days, 24 months, and 24 years. Flash flood and 24 hour rain alarms. Rain gauge uses tipping bucket (self-emptying) technology.

Rain Storm - Rainfall for the last 24 storms, with beginning and ending dates for each storm. Rain storm warning and alarm.

Wind Speed - Current wind speed. Average for the last ten minutes and each of the last 24 hours. High and average wind speed alarms.

Dew Point - Current and for each of the last 24 hours. High and low dew point alarms.

Sunrise and Sunset - Time of sunrise and sunset at your location - it even takes daylight savings time into account!

On screen graphing - Graph current conditions, averages, or highs and lows for the last 24 hours, days, months, even years.

Barometric Pressure - Current and for each of the last 24 hours. Five position trend arrow shows whether pressure is rising, falling, or stable.

Humidity - Current inside and outside humidity, and for each of the last 24 hours. High and low humidity alarms.

Rain Rate - Current and for each of the last 24 minutes. Rain rate alarm.

Wind Chill - Current wind chill. Wind chill alarm.

Wind Direction - Current and for the last 24 hours, 24 days, and 24 months. Direction of high wind speed.

Heat Index - Current and for each of the last 24 hours. Heat index alarm.

Highs & Lows - For most weather variables, with time and/or date, for each of the last 24 hours.

Your Own Local Forecast - The Vantage Pro2 forecast icons show sun, part sun, clouds, and rain, or snow. You may also check the scrolling ticker-tape at the bottom of the display for more details.

Optional Sensors - Ultraviolet (UV), solar radiation, soil moisture, soil temperature, and more.

Optional Weatherlink - Weatherlink comes with a 2250 set data logger, PC connection (Serial or USB) and software to save you weather data to your PC then upload it to your web site.

Optional Remote Telemetry - Remotely connect the station via PC or Mobile using the GSM, CDMA, Next G, 3G Networks or Telstra analog Phone line.

Davis Instruments

Davis Instruments, a privately held manufacturing company and developer of exceptional instruments for weather, marine, and automotive use, prides itself on innovative, high-quality products and services at reasonable prices. They are located in Hayward, California and have consistently continued growing for 53 years.

The Davis Vantage Pro2 Plus and Fan-Aspirated Radiation Shield (6163AU) Includes:

• Davis Vantage Pro2 Console
• Davis Vantage Pro2 Integrated Sensor Suite
• Rain Collector
• Temperature and Humidity Sensors
• Solar Radiation Sensor
• UV Sensor
• Anemometer
• 12m Anemometer Cable
• Solar Panel
• Mounting Hardware (mounting tripod sold separately)

Temperature and humidity sensors are enclosed in the patented, solar-powered, 24-hour fan-aspirated radiation shield. Shield combines active and passive aspiration to minimize the effects of radiation.
